Cake, Oil and the Kitchen Revolution: The eggbeater

This is not what Marie Antoinette, the young ravishing French Queen had in mind when she spoke her famous “Let them eat cake” as Paris burned – or was that Nero in Rome? Doesn’t matter. “Cake” in the 18th century was the semi-charred bottom of a loaf of bread – at least the cook hoped it was only semi-charred – the result of thin sheet pans sitting directly on the hot bricks of a wood heated oven. The cook would slice off the charred bottom section and send the “upper crust” of the loaf to the dining table. The Queen was suggesting that the tens of thousands of bottom crusts – the cake –  from the bread shops be distributed to the poor instead of going to the pigs…misinformation…it’s enough to make you lose your head.

the charred bottom part (the cake) would be cut off before the “upper crust” would go to the dining table

The delectable 8″ lemon and raspberry cake, in the first photo, was purchased for $23.00 at the Night Kitchen, Chestnut Hill’s (Philadelphia) premier bakery, for my wife’s birthday. Prior to 1856, making such a cake would have cost dearly in real money, and it all had to do with the one simple ingredient of the egg white. Only rich households could afford the expensive sugar,  flavorings and the hired help that would laboriously hand whip the egg whites in copper pans to produce the essential white foam required to help lift the batter into the light texture we so prize in a cake – not to mention getting the oven temperature correct. It took American ingenuity to bring this über luxury into the middle class home.

Dover Stamping Co, Boston, 1870 – my oldest egg beater

Don Thornton’s Beat This: The Eggbeater Chronicles – the Stirring History of America’s Greatest Invention is the only authoritative study, and its title is not hyperbole. I doubt anyone who’s ever used a hand eggbeater at 7:00 a.m. to prepare scrambled eggs ever gave a thought to the revolution this 1856 invention started. One of the over 1,000 patents granted in the USA alone since 1856 for hand eggbeaters explains the genius succinctly:

“An egg beater having a manually cranked drive wheel with opposed gear faces which are engaged by a pair of pinions keyed to the shafts of intermeshing beater elements whereby the turning wheel causes these elements to rotate in opposite directions.”

Why is this genius? What we take for granted as a simple device was, in reality, a seminal invention – a gear mechanism responsible for such essential tools as the hand drill for everyday home use, the oil drill exploring for “black gold” and the automobile transmission. But first it revolutionized the kitchen allowing for today’s bakeries, Dunkin Donuts and Mom’s birthday cakes for the children.

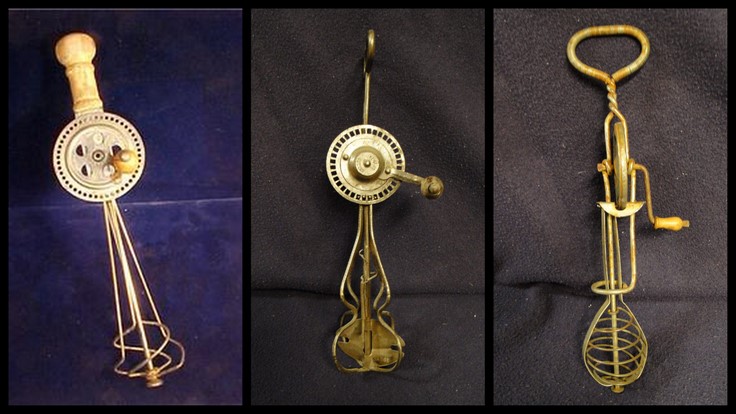

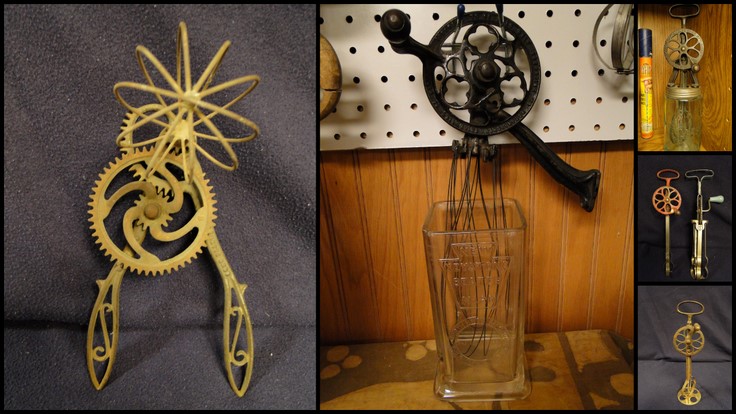

Late 19th century: Philadelphia, Brooklyn & New England manufactures

Ingenuity quickly ignited creativity with elegant cast iron designs – beautiful glass containers to prevent splatter, thin dashers allowing beaters to be inserted in jars and stands allowing them to stay up in a bowl. (Please click photos to enlarge.)

I was eleven years old when I graduated from box cake mixes and wanted to make real cakes. The dreaded egg whites where the killer. Coming from a family that enjoyed good food, at restaurants, but had no time for home cooking, it took a lot of trial and error before I mastered the technique.

To whip egg whites:

(1) always seperate cold eggs, dropping the white, one at a time, into a small bowl and putting the yolks into a seperate bowl.

(2) Check the white and make sure there is not even a speck of egg yolk in the white. Any yolk at all will cause the whites to fail. Transfer the whites, one at a time, to a clean, grease-free mixing bowl. Repeat this until you’ve seperated all the eggs.

(3) The egg whites must sit at room temperature for one hour – cold egg whites will not produce the necessary volume.

(4) Make sure the mixer’s dashers are grease free and clean. Whip at high speed until soft peaks form, hold but gently fold over as you lift the dashers. Do not over mix because the whites will become stiff and actually lose the essential air that’s been incorporated.

(5) If you are making a meringue, start adding the sugar once the whites begin to foam, but, sprinkle the sugar slowly as the whites are beating. Adding the sugar too fast will cause the whites to collapse.

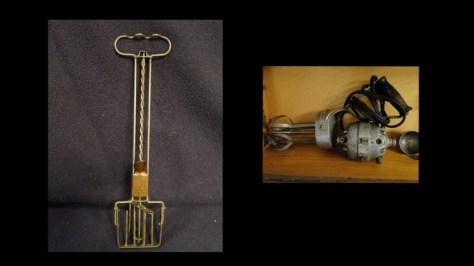

(left) 1906 archimedes type, (right) Dormeyer patent 1921 electric

My 140 egg beater collection (at current count) started some years ago. I always liked old tools, but it was an uncle that piqued my interest in the egg beater over 25 years ago when he gave me my first two antiques.  Curiously the one on the left, above, is not based on the 1856 gear mechanism but rather the 3rd century Archimedes screw principle. This rare 1906 beater was considered by its inventor, George Flowers of Philadelphia, to be an improvement because of its lack of gears that could get out of alignment. In 1921 a patent was granted for a portable hand-held electric mixer. Hamilton Beach made the motor and Dormeyer marketed the beater. The motor housing detaches so the dashers can be washed. It still works fine.

Years later, as a Chef/Educator, student interest in old kitchen tools led me to explore antique markets, and ebay, where I discovered a new world – the enormous variety of eggbeaters, their ingenuity and fascinating industrial designs. From beating egg whites, inventors turned to simplifying other common kitchen tasks.

Dunlap’s Sanitary Silver Blade Cream & Egg Whip 1906

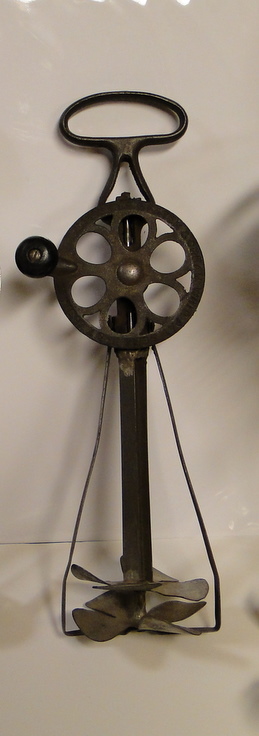

Lyon’s double dasher turbine 1897

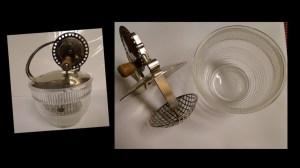

Androck glass jar turbine eggbeater 1930’s

Heavy cream  splatters when beating to create whipped cream. Although incorporating air into cream is necessary, it doesn’t require the volume traditional dashers provide. By the late 1800’s inventors were creating flat, horizontal dashers. The 1897 Lyon has a unique set of double dashers that rotate in opposing directions. The Dunlap Sanitary Silver Blade came with a dedicated ironstone bowl with an indentation that fit a tip on the blade’s bottom to keep the beater in place. Other designs were meant to fit into dedicated glass jars.

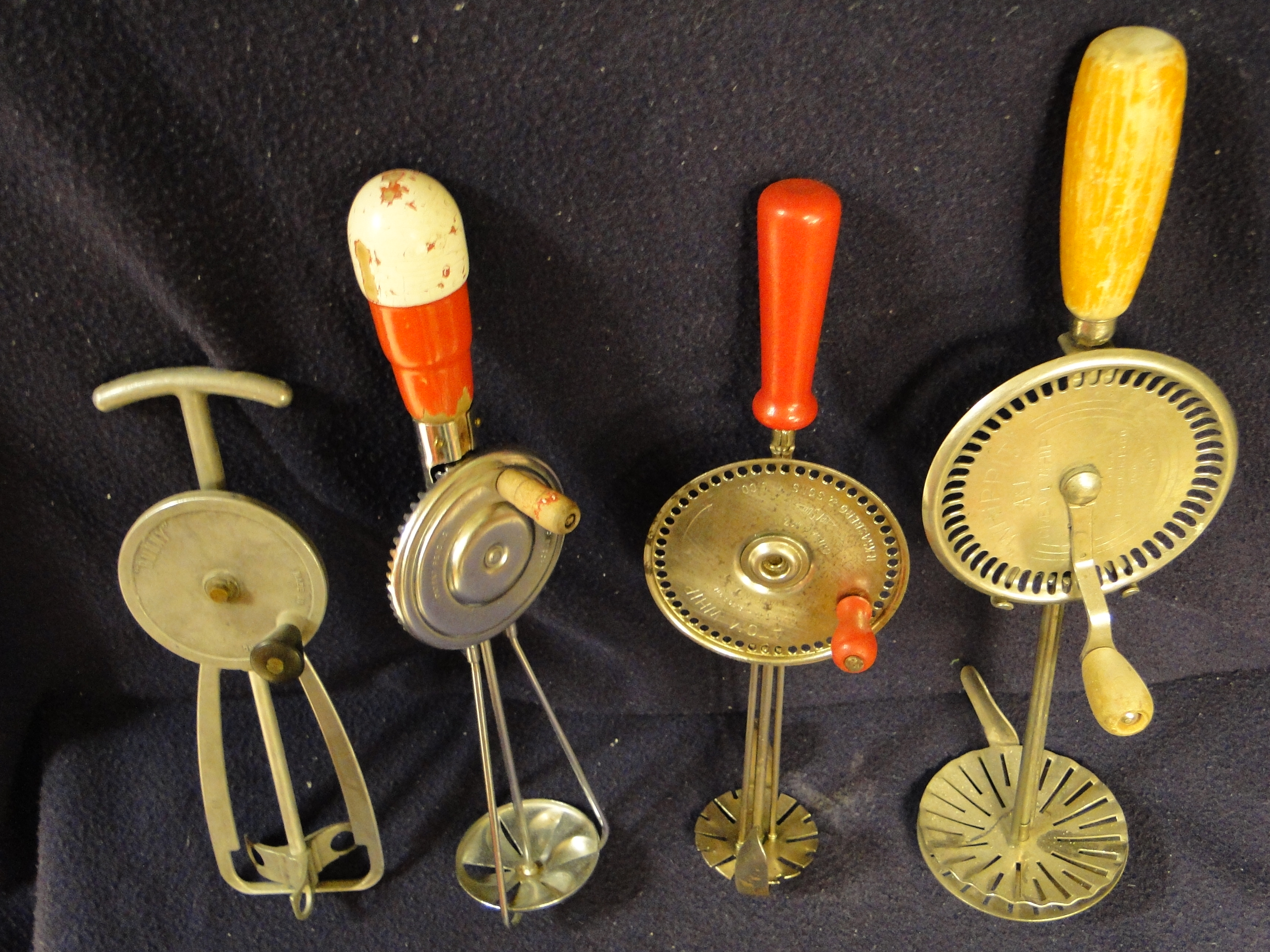

turbine eggbeaters 1930’s from England, Canada, USA

Everyone wants to avoid splattering their clothes. Putting a beater in a glass jar had been an idea since the 1880’s. Besides the rotary gear and the Archimedes slide screw, a basic spring coil that agitates the mixture is a common mechanism in many beaters. One ingenious device marries the Archimedes with a counter weight that spins a single dasher in continuous motion just like a child’s toy top – the 1939 Jiffy Mixer.

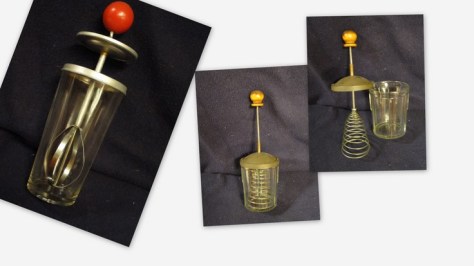

(left) Jiffy Mixer 1939, (right) coil spring plunger 1931

By the 1920’s, heavy cast iron egg beaters were losing their appeal. For a collector, the cast iron beaters are beautiful with elaborate and imaginative designs – the golden age. For the cook they were heavy, brittle and the gears needed constant lubrication and adjustment to stay aligned. By the early 20th century, tin and aluminum were replacing cast iron. Many tin beaters were inexpensive and flimsy – like early plastic – but the aluminum beaters were innovative, extremely light and high-end. Louis Ullman, New York City, patented his all aluminum American Beauty and created an instant success.

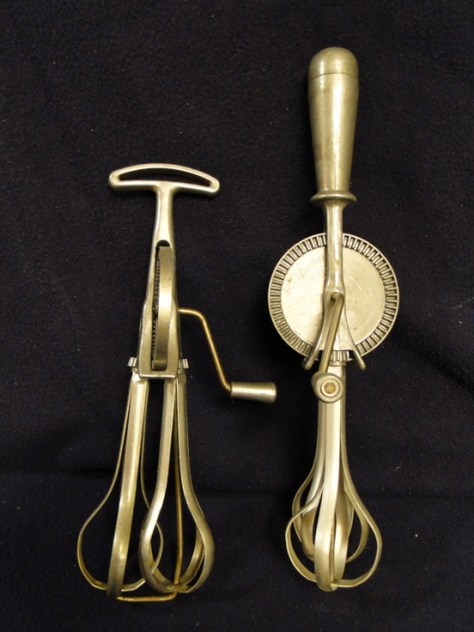

Louis Ullman aluminum eggbeaters 1920

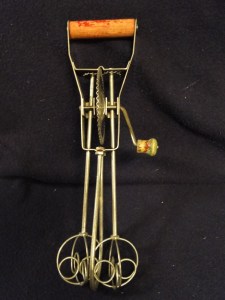

Elliott’s Kansas City “soap bubble” dashers (Red-E-Mixer) 1951

Clarence Elliott of Kansas City developed a high-end, sturdy beater sought after by collectors and known as “KC’s.” Inside the round dashers he placed additional round rings dubbed “soap bubbles” which aerated a mixture with great efficiency. His 1935 model with a folding side  handle is a particularly nice design.

Kansas City folding handle 1935

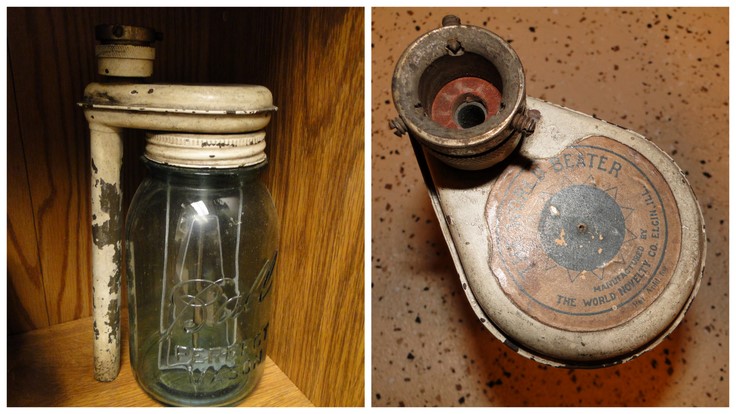

 In the 1920’s less than 50% of the American population had electricity in their homes. Water powered glass jar eggbeaters were the high-end kitchen tool in these households. Operated by attaching a hose or tightening a faucet connection, water circulated through the cap turning the dashers – the water emptied down the tube. Even better for the thrifty farm cook, the mechanism attached to a standard one quart Ball canning jar.

water powered egg beater World Novelty Co. 1924

Before 1860, making butter was a laborious process of aerating the cream by plunging a wood dasher up and down. The egg beater gear mechanism revolutionized butter allowing any kitchen to make fresh butter, and its accompanying butter milk, in “two minutes.” Actually, it took about five minutes when I use the 1914 Two Minute butter churn.

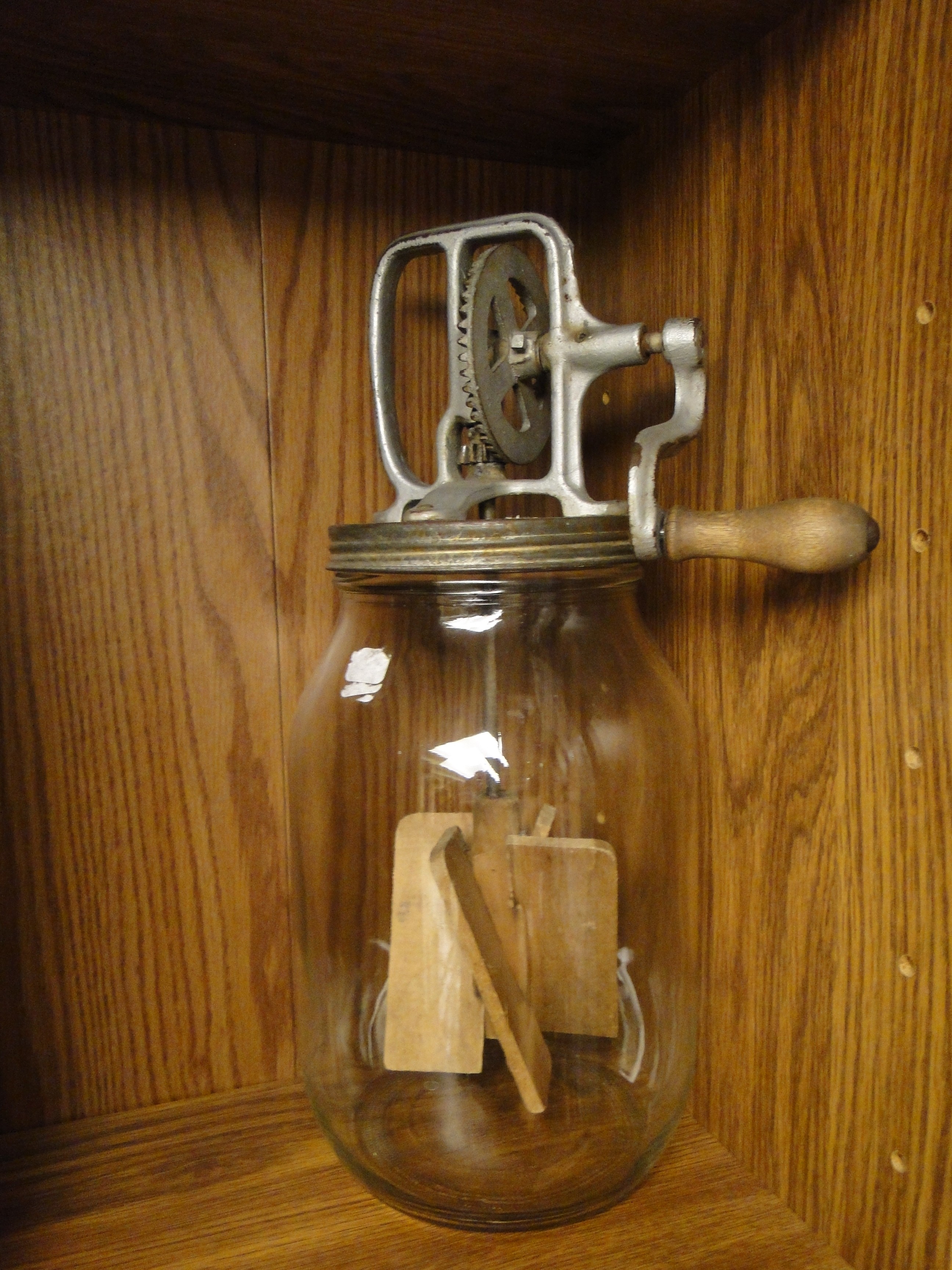

“Two-Minute” Butter Churn 1914
French mayonnaise maker, late 1800’s

Mayonnaise has been a beloved sauce, especially in France and Spain, since the early 1700’s. Its preparation by hand, even today, requires patience, skill and time. Prior to the egg beater,  the whole eggs had to be beaten with a whisk for a considerable amount of time while the oil was added drop by drop. Adding the oil too quickly – faster than a drop at a time – will cause the eggs to stay flat and thin because the oil will fail to bond with the yolk protein during aeration. Not only did the eggbeater lessen the hand drudgery, but the ingenious addition of an attached funnel allowed the cook to control the drops of oil by adjusting a valve.

circa 1920’s French egg beaters

The French created fanciful designs for their dashers, as evidenced by the above three egg beaters.

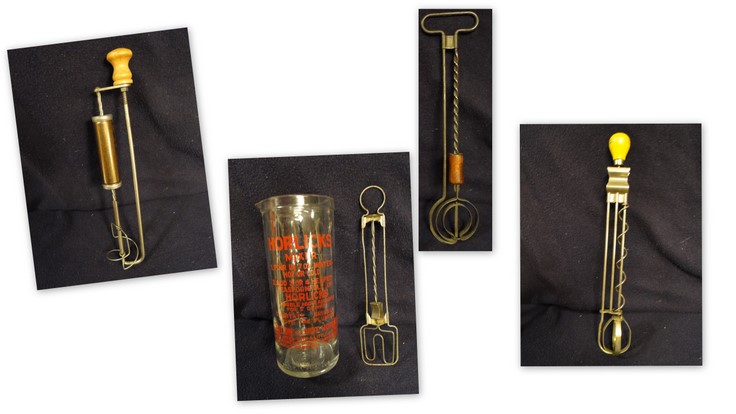

Archimedes beaters 1875 through 1930’s

These Archimedes beaters, above, attest to both interesting designs and marketing. The second from the left, with the jar, is English, Horlick’s Malted Milk powder, created by the aristocratic Horlick brothers, but manufactured in Racine, Wisconsin for the American market. Their simple beater and jar, which included the mixing procedure, was frequently included for free when a customer purchased their first supply of powder.

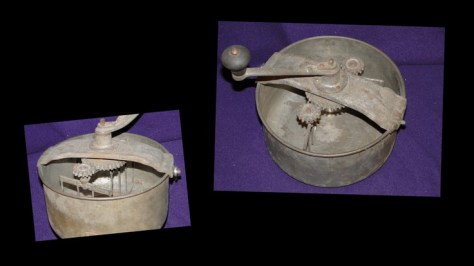

The Universal Cake Mixer 1905

Labor saving devices were the hallmark of the Industrial Revolution. The 1905 Universal Cake Mixer went one step further allowing the baker to combine all ingredients and gently fold the beaten egg whites into the batter.

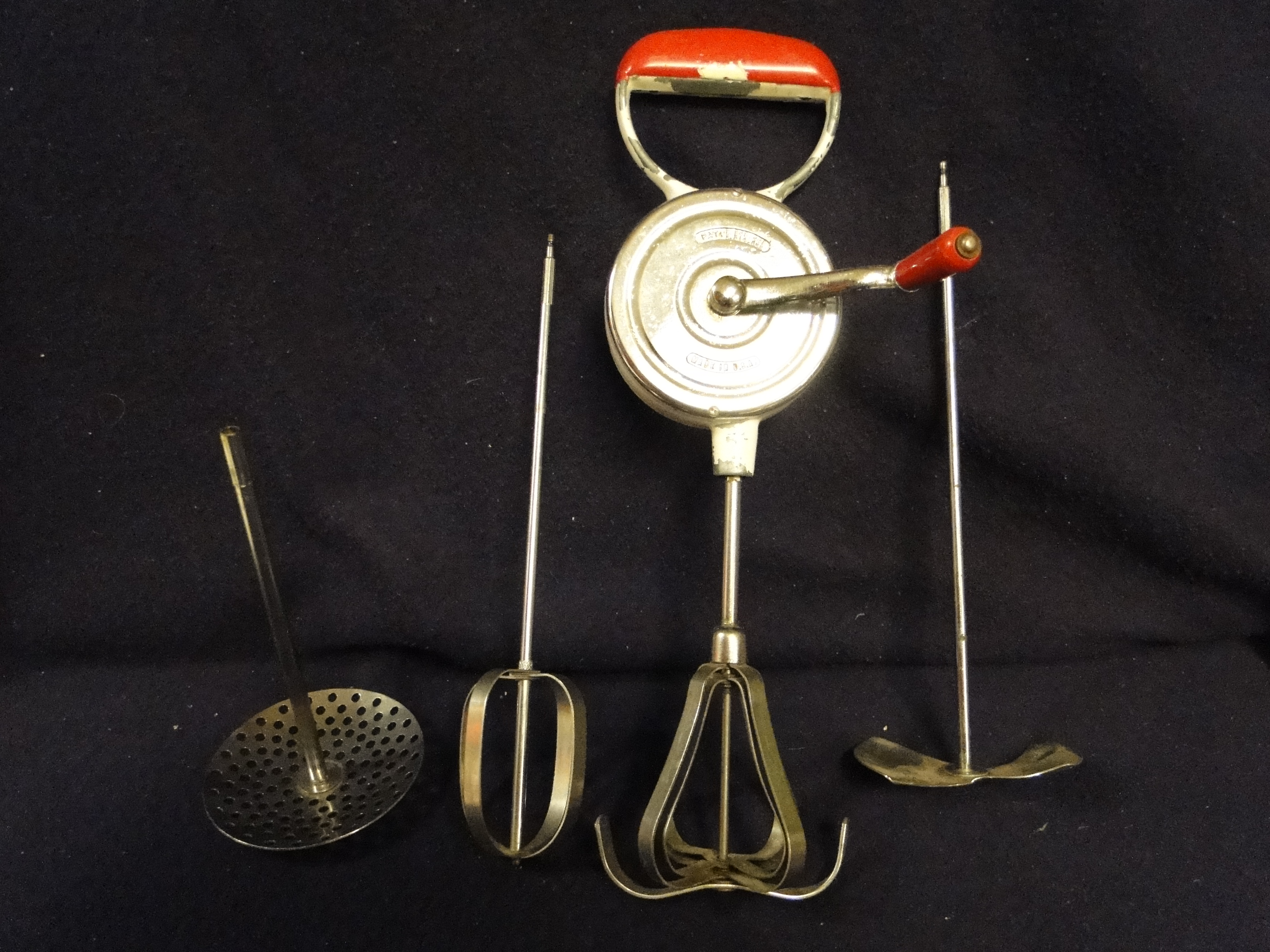

Yoder Food Mixer 1941

The Yoder Food Mixer’s interchangeable dashers was revolutionary for a hand mixer. Its encased housing allowed easy lubrication of the gears providing, to this day, smooth operation for all mixing needs.

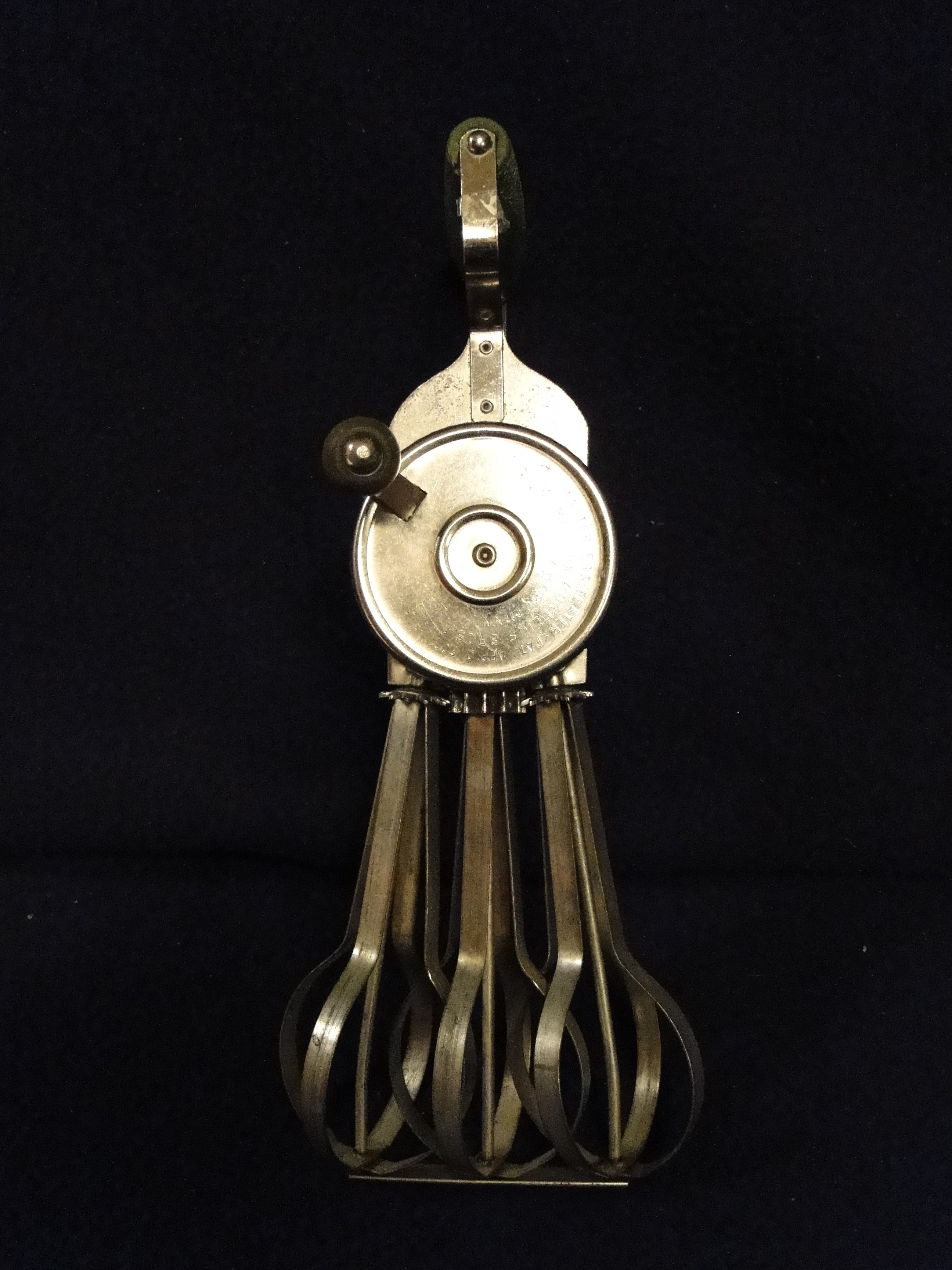

Aureluis triple dasher 1945

My two personal favorites are the Aureluis Brothers triple dasher and the Maynard Master Mixer. The triple dasher is the only one of its kind manufactured in the United States. Even though the Aureluis Brothers Co. of Braham, Minn., made many types of tools, it was Eugene Aureluis who became fascinated with the egg beater. From 1926 through 1949 he designed and manufactured 4 egg beaters that were built to last. Although the company no longer makes egg beaters, it is still in Braham and owned by the second generation of one of the company’s first employees.

Maynard Master Mixer 1950’s – MOMA’s Good Design Award

The Maynard Manufacturing Co. of Glendale, CA, made some of the finest manual eggbeaters ever. Once more, they were like tanks and used state-of-the-art materials  such as stainless steel and nylon. The gears were encased in hard plastic with a hole to add lubricating oil. The 1950 Master Mixer was based on a 1923 design.  The dashers minimize splashing by using hard nylon plastic. The Master Mixer was awarded New York City’s Museum of Modern Art (MOMA) award for industrial design and is part of their permanent kitchen tool collection.

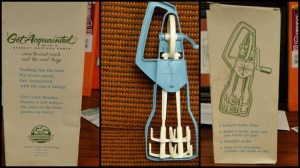

Stanhome, Inc., “Get Acquainted” Hostess Party gift, 1950’s

Oddly, the beater to the left looks similar to the Master Mixer, but it’s a cheap knockoff. Perhaps Maynard sold this design to Stanhome, Inc. of Westfield, MA. It’s a flimsy plastic version that was a house gift for a Stanley Hostess Party, a 1950’s “tupperware-like” house party event for kitchen and household products, in the days before Wal-Mart.

The Soviet dominated East German manufacturing industry was infamous for making shoddy products and the Gloria, (below left) is a prime example. Despite its similarity to the Maynard, the plastic housing encloses gears that rattle and the beater would definitely not last long under constant use. The thin wire squeeze whip on the right, below, is of unknown origin and, hopefully, few were ever manufactured.

(left) the Gloria, made in East Germany 1951, (right) unknown

Ron Propeil, founder of Ronco Industries, was a true American marketing genius. Following a long tradition of traveling salesmen and hawkers, he created the TV infomercial that is the solace of so many people awake at 3:00 a.m. Versions of his inexpensive inventions remain on the market today – the Veg-O-Matic, the Chop-O-Matic and the Whip-O-Matic. Combining inexpensive plastic, Hobart planetary dasher design and marketing chutzpah, Propeil launched an empire, created an entire advertising niche and earned a devoted following among collectors and consumers looking for cheap products.

Propeil’s Whip-O-Matic 1975

The egg beater gear design advanced the modernization of equipment for many professions. The 1931 Whip-Mix Spatulator, was, as stated by its inventor,  “For mixing compounds for the preparation of molds in dental castings.”

Whip-Mix Spaculator 1931

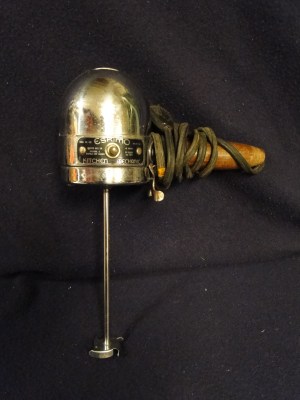

Eskimo drink mixer

The first electric egg beater, meant for commercial baking, was granted a patent in 1885. It was a huge machine with a fan belt running from the motor to the gears that turned the dashers. Yet it was not long before the lure of electricity was pulling the affluent household away from the ingenuity and beauty of many hand beaters. An interesting 1930 example was the Bersted mixer. Mr. Bersted was infamous for purchasing profitable companies and eviscerating their tools turning them into cheap products. He would then sell the company before his scams caught on. The Eskimo Co. had a reputation for excellent electric fans. Bersted simply took the fan motor, added a handle and shaft with a blender blade and sold it as a milk shake mixer. Few of his “reinvented” companies survived after he bailed out with hefty profits.

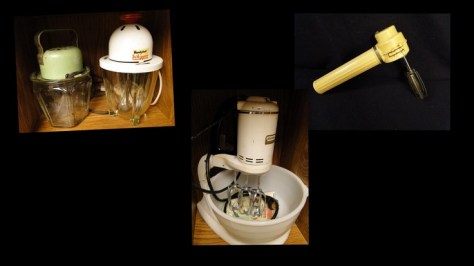

from left: small dedicated glass bowl single dasher electric mixers ca.1920 – 1940, triple dasher GE 1940’s, Japanese hand held battery mixer ca. 1960-1970

Herbert Johnson, in 1908, revolutionized the electric egg beater through his invention of “planetary action” in which an individually rotating beater travels in one direction around the inside of a mixing bowl while the dasher revolves in the opposite direction resulting in superior mixing. Johnson envisioned that his mixer could accommodate a plethora of attachments from beater, whip, bread hook, meat grinder, juicer etc. – a total kitchen appliance.  When the Hobart company began marketing the KitchenAid in 1916 it sold for the very high-end price of $189.50 ($2,400 in 2010 dollars.) Today, an average KitchenAid sells for less than $300.

left: 1920’s KitchenAid Ad, right: modern KitchenAid

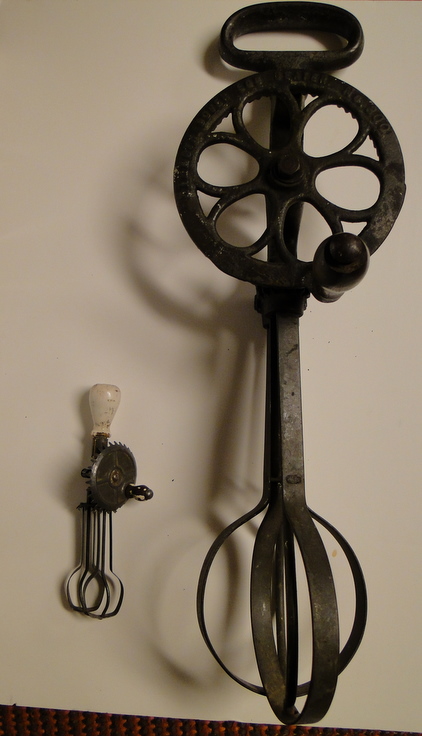

(left) the Betty Taplin, (right) the Mammoth 300

The world of the eggbeater is vast and this article simply introduces the story. It revolutionized home and commercial baking. From the 16 1/2 inch cast iron Dover Mammoth 300, weighing 6 pounds, to the Taplin child’s toy beater, the Betty Taplin, weighing ounces, the eggbeater is a true American success story. My use of the word story is deliberate, because what is ingenuity but the personal stories of visionaries.

Taplin’s Little Baker
